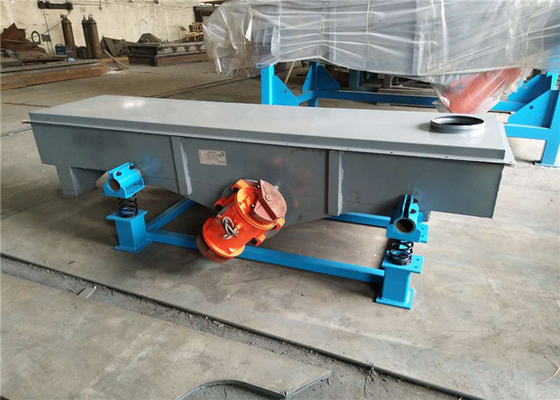

Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen

Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen

  • Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen
  • Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen
Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Other Names: Rectangular Separator, Linear Vibrating Screen, Horizonal Vibrating Screen Etc. Motion: Linear Motion
Drive Device: Two Vibration Motors (horizontal Arrangement) Characteristics: Easy To Clean And Operate, Large Capacity, Multi-deck Screening, Low Noise Etc.
Screen Surface: Tilt Angle 0°~7° Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc.
Mesh Cleaning Device: Bouncing Balls, Ultrasonic Deblinding Device Etc. Applicable Materials: Wood Chip, Silica Sand, Limestone, Graphite, Bauxite Etc.
High Light:

linear motion vibrating screen

,

horizontal vibrating screen



Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen



Introduction of High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​​:

The High-efficiency Linear Vibrating Screen Machine for Granite Moorstone is designed with dual-vibration motor drive, two synchronous motors are reversely placed so that the exciter generate reverse excitation force, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis, and stack together with the perpendicular direction of motor axis, so its trajectory is linear. Linear vibrating screen is suitable for particle size from 0.074mm~5mm, and the maximum size should be less than 10mm.

   The linear vibrating screen is also widely known as the rectangular separator, linear vibrating screen, linear vibrating sieve, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.



Working Principle of High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​​​​:

  The linear vibrating screen uses double vibrating motors to be power source. The eccentric blocks driven by the motors could provide centrifugal force, whose component force moves forward along the linear direction. Thus the screen device supported by the spring suspension can move linearly. And the material on it moves forward straightly when tossed upward. When falls into the screen frame again, the material will move forward quickly and penetrate the screen in a fluffy state. Desirable screening performance can be achieved simply by choosing suitable screens for the linear vibrating screen.

Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen 0

Structure of High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​:

  The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device etc.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Characteristics of High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​​:

1. High accuracy screening efficiency,simple and stable structure, convenient maintenance;
2. The beam and screen box are connected by high strength blot without welding;
3. Less energy consumption,lower noise,longer service life;
4. Long travel distance for materials on the screen surface, high screening efficiency;
5. Suitable for rough screening with high capacity.



Important Information About High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​:

Other Names linear vibrating screen, linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
Shape rectangular shape
Motion linear motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The more layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.
Mesh Deblinding System bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L, titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application rock, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.



Technical Parameters of High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​​​​:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



Application of High-efficiency Linear Vibrating Screen Machine for Granite Moorstone​​​:

  The linear vibrating screen is widely used in mining, coal, refractories, metallurgy, building materials and other industries.It is usually used for the screening and grading materials in large, middle and small particles etc.

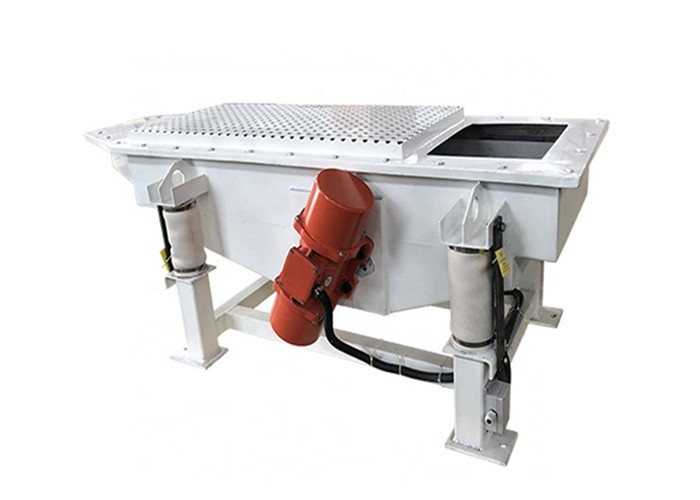

Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen 1Granite Moorstone Linear Vibrating Screen Machine Horizontal Vibrating Screen 2
