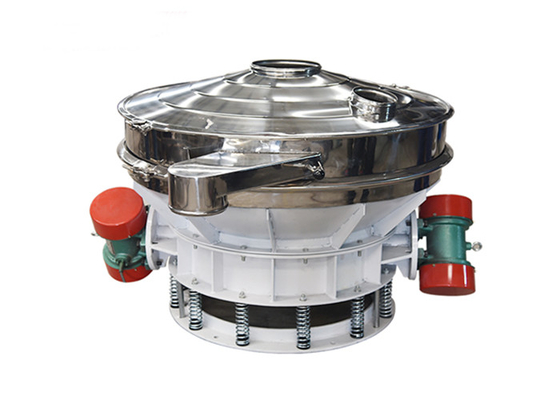

Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders

Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders

    • Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders
    • Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders
    • Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders
  • Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders

    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015
    Model Number: AX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Fumigation-free plywood wooden case for export
    Delivery Time: 20~30 work days after order confirmed
    Payment Terms: T/T, L/C
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Features: The Fine Material Discharge Port Is Designed At The Bottom Of The Machine Advantages: Compact Design, Simple Cleaning, High Capacity, Fast Screen Replacement Etc.
    Height: 500mm Or Less (such As 350mm) Mesh Debling System: Ultrasonic Mesh Cleaning Systems, Bouncing Balls
    Layers Of Screen: Single Layer, Two Layers (optional) Machine Diameter: 400mm~2100mm
    Driving Device: 1~2 Horizontal Vibrating Motors On The Side(s) Of The Machine Application: Flour, Starch, Milk Powder, Additives Etc.
    High Light:

    1800mm Vibration Separation Machines

    ,

    2100mm Vibration Separation Machines

    ,

    Cosmetic gyratory screen separator

    Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders



    Product Introduction of Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders​:

     Our low profile flow-thru vibrating safety screeners for instant noodles commonly referred to as safety screeners, control sieves,  low-profile vibrating sieve, low profile separator, flow-thru separator, inline screen etc. This type of vibrating sifter is useful to remove foreign particles from desired material, removal of lumps from powder, separate different size of material, separation of oversize from screened material, especially for flour powder.



    Some Important Information You May Concern About Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:

    Alternative Name flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc.
    Motor single vibrating motor, dual vibrating motors (optional)
    Height 500mm or less (such as 350mm)
    Mesh Debling System ultrasonic deblinding system, bouncing balls
    Layers of Screen 1~2 layers of screens
    Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm
    Discharge Port the discharge port for fine particles are at the bottom of the machine
    Purpose suitable for materials safety screening with less oversize particles
    Machine Shape round, rectangular
    Damping Spring steel spring, rubber spring
    Application flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc.



    Technical Parameters of Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:
    Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 0

    Model 400 600 800 1000 1200 1300 1500
    Power 0.1kw 0.1kw 0.1kw 0.2kw 0.2kw 0.2kw 0.4kw
    Screen Diameter 350mm 550mm 750mm 920mm 1005mm 1120mm 1420mm

    Note: the data above are for reference only, and our company reserves the right to modify the data.



    Features of Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:

    1. High Output For Impurity Removal: Inlet and outlet design in the same vertical direction, finished product rapid through the mesh, reducing materials stay time on the screen surface, a substantial increase in screening output.
    2. Small Volume: The motor is designed on the outside of the equipment, maximize the reduction of equipment height, and make space efficient use. The equipment is easy to operate and has no dead ends for cleaning.
    3. The vibrating compact sieve can be directly used in the pipeline to remove foreign matter and impurities, without manual operation, to avoid secondary pollution of materials.
    4. Negative Pressure Dust-free Operation: Negative pressure environment, dust-free environmental protection straight sieve can be used with the vacuum feeder directly, screening and conveying dust-free operation.
    5. Security Guard: Perfect coordinated with packaging machine, straight sieve’s nickname is security guard, the materials directly into the packaging machine for packaging after screening, reduce labor intensity, improve work efficiency.



    Application of Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:

    It is used in screening granules and powders, which is suitable for single-deck sieving and screening on raw materials of small production of fewer impurities, such as flour, starch, detergent, metal powder, additive, chemicals, non-mining industries etc.



    Working Principle of Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:

      This compact sieve adopt high-frequency vibration motor as the excitation source, the materials do three-dimensional rotary motion on the screen surface after into the system, flour and agglomeration fully dispersed, rapid through mesh directly to the lower silo. Foreign matter and impurities are separated and discharged to the slag discharge port, the machine play the role of “safety officer” on the production line.
      Our low-profile vibrating control sieve can be used in the feed system of front production line of instant noodles, noodles, snacks, solid drinks etc., to separate the foreign matter from the raw materials (flour, starch, milk powder, additives etc.). Because it is in series with the system and automatically separates foreign matter, it is honored as the “safety officer” on the food production line. The flour sieve can replace the manual observation of the foreign matter and check-up action.



    Some Kinds of Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:

    Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 1Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 2

    Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 3Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 4

    Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 5Three Dimensional Vibration Separation Machines Low Profile For Cosmetic Powders 6



    Optional Ultrasonic Deblinding System for Low Profile Flow-thru Three-dimensional Vibration Separator for Cosmetic Powders:
    The ultrasonic mesh cleaning systems leads to significant improvements of the production process. Experience has shown that especially fine particles in the lower µm range can hardly be screened without ultrasonic. Ultrasonic deblinding system will eliminate blinding and blockages of the mesh.
    1. Improved separation efficiency
    2. Extended cleaning intervals
    3. Reduced dynamic stress
    4. Increased screening throughput
    5. Single and twin operation possible
