| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AM |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Movement: | Involute Spiral Motion | Screening Precision: | Up To 90% ~ 99.9% |
|---|---|---|---|
| Other Names: | Tumbler Screen, Tumbler Screener, Tumbler Screening Machine, Tumbling Screen | Layers Of Screen: | 1~5 Layers Of Screen |
| Mesh Cleaning Method: | Self-cleaning Ball System, Ultrasonic System, Rolling Brush, Air Brush Etc. | Machine Diameter: | 600mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm Etc. |
| Optional Device: | Quick Clamps, Pneumatic Lifting Devices Etc. | Application: | Spherical Mineral Granules, Nickel Ore, Food Additives, Food Flour, Micronised Materials, Mineral Powders, Plastic Powders, Plastic Powder, Glass Beads, Xylitol, Citric Acid, Calcium Carbonate Etc. |
| High Light: | 90% Tumbler Screening Machine,Mineral Granules tumbler screener,Mineral Granules Tumbler Screening Machine |
||

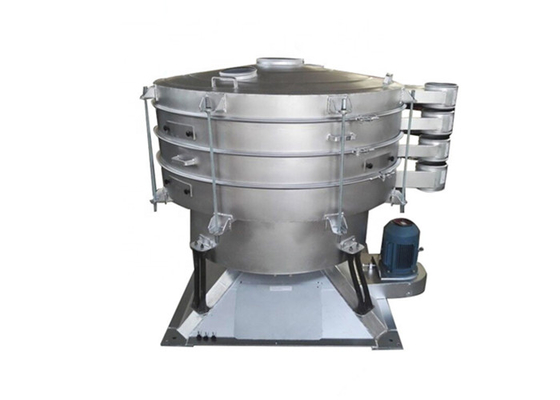

High Capacity Tumbler Screening Machine For Spherical Mineral Granules
Overview of Tumbler Screening Machines for Spherical Mineral Granules:
Tumbler screening machines for spherical mineral granules is an efficient sieving machine, which is designed to meet the large output and high-density sieving of the manufacturer. The tumbler screening machine is also known as tumbler screen, tumbler screener, tumbler screening machin, tumbler sieve, swinging sieve, shaking sieve etc.
The instantaneous motion of tumbler screener is the combination of the radial displacement and the circular motion with the displacement along the axis (spiral motion). The exciter that can adjust the eccentricity produces a nonlinear three-dimensional motion, and the material also produces the same approximate manual movement to achieve the purpose of screening, and the screening accessory can be used to obtain one more ideal sieving effect.
As the result, the tumbler screener can realize one perfect sieving solution with 99% accuracy and more than 5 times higher output than tradition vibration sieving machines.
Important Information About Tumbler Screening Machines for Spherical Mineral Granules You May Care:
| Motion | involute spiral motion |
| Screening Accuracy | upto 90%~99.9% |
| Mesh Cleaning Method | bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning |
| Screen Structure | whole adhesive screen, or splicing segmented screen etc. |
| Layers of Screen | 1~5 layers of screen |
| Diameter | 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm etc. |
| Advantages | soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity |
| Optional | quick clamps, pneumatic lifting devices etc. |
| Application | can be used for material that is flammable, explosive and easy to generate static |
Application of Tumbler Screening Machines for Spherical Mineral Granules:
1. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
4. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide etc.
5. Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder etc.
Working Principle of Tumbler Screening Machines for Spherical Mineral Granules:
The tumbler screen machine is an artificial imitation of shaking low frequency vibration sieve, working principle is synthesis of transient motion displacement and this displacement in the radial direction of the axis of circular motion (helical motion), can adjust the eccentricity nonlinear three-dimensional motion of the exciter, the material also produces same motion approximation manual jobs, so as to achieve the purpose of screening, combined with sieving attachment can get more ideal screening effect. Suitable for circular, cylindrical, sheet, and even regular shapes easy to block network and require sophisticated screening materials.
Technical Parameters of Tumbler Screening Machines for Spherical Mineral Granules:
| Model | Screen Area (m²) | Layers of Screen | Motor Power (KW) |
| AM-600 | 0.28 | 1~5 | 0.25 |
| AM-1000 | 0.72 | 1~5 | 1.5 |
| AM-1200 | 1.10 | 1~5 | 1.5 |
| AM-1500 | 1.80 | 1~5 | 2.2 |
| AM-1800 | 2.30 | 1~5 | 4.0 |
| AM-2000 | 2.60 | 1~5 | 4.0 |
| AM-2300 | 3.90 | 1~5 | 4.0 |
| AM-2600 | 5.30 | 1~5 | 5.5 |
| AM-2900 | 6.40 | 1~5 | 5.5 |
Features of Tumbler Screening Machines for Spherical Mineral Granules:
Pneumatic Lifting Device BALANCE IS IMPORTANT !!
