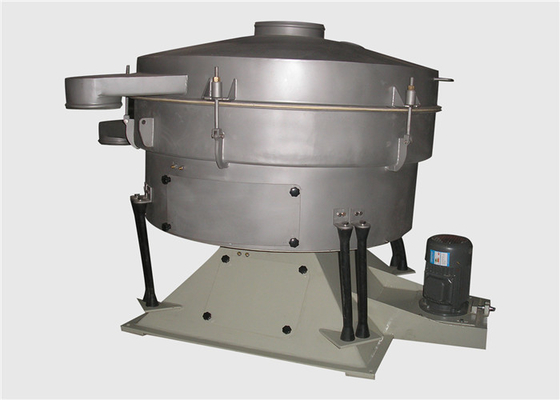

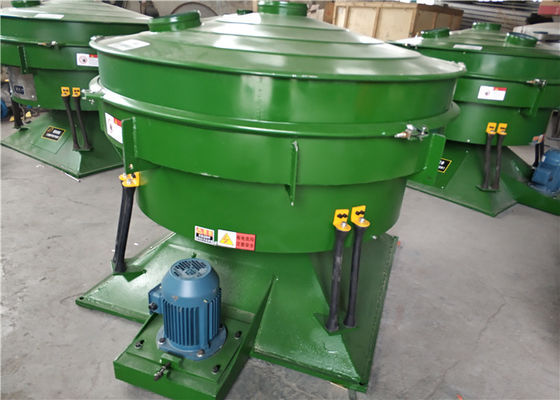

Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic

Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic

  • Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic
  • Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic
Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Movement: Imitate The Manual Screening Action, Involute Spiral Motion Motor Brand: ABB, Siemens Etc.
Screening Accuracy: High Up To 90~99.9% Diameter: 600mm~2600mm
Characteristics: Large Capacity, High Screening Accuracy, Soft Rock Screening Does Not Destroy The Particles Original Structure Of The Material And Not Easy To Produce Static Electricity Mesh Cleaning Method: Bounce Balls, Ultrasonic System, Rolling Brush, Air Brush Etc.
Optional Design: Brand Motor, Quick Clamps, Pneumatic Lifting Devices Etc. Application: Amino Resins, Melamine Resin, Calcium Carbonate, Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives Etc.
High Light:

Amino Resins tumbler sieve

,

Amino Resins Tumbler Sifter

,

Moulding Plastic Tumbler Sifter

Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic



Overview of Tumbler Screening Machine:

  What is a tumbler screening machine? The tumbler screening machine is also called tumbler screen, tumbler screener, tumbling screen, tumbling screener, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc. Tumbler vibrating screen machine is a new and high-efficient sieving machine machine which is designed to meet the requirements of large output and high-density sieving. It make use of artificial sieving movement successfully (its sieving precision, sieve efficiency and sieve life is 5~10 times of common sieve machine), and suitable for all the fine, ultra-fine powder and special materials, particularly suitablefor materials which are difficulltto deal with.

  Unlike a typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.

  Basically the movement of a tumbler screening machine can be compared to natural hand screening. For the control screening, fractionating and de-dusting of dry, powdered and granular products. Particularly suitable for high feed rates and multi-deck separations of fine, lightweight products which are difficult to screen.

  The tumbler screening machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes.



Motion  involute spiral motion, imitate the manual screening action
Screening Accuracy  high upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen optional
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm etc.
Advantages  the soft tumbling screening won't destroy the particles original structure   of the material and it is not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices, brand motor etc.
Application  can be used for material that is flammable, explosive and easy to   generate static electricity



Working Principle of Tumbler Screening Machine:

   While the tumbler screening machine is running, its radial inclination ensures that the material being screened moves from the center of the screen outwards, while its tangential inclination makes the material move in circular fashion on the screen. The interaction between the two resulting forces makes the particles being screened move in a spiral pattern on the screen fabric, ensuring that the particles stay a long time on the screen. This, in turn, enables the machine to achieve an optimum level of grading accuracy with respect to the particle size ranges while simultaneously minimizing oversize and fines contamination.

   The movement of a tumbler screener is usually compared with simple hand screening. The product is continuously fed into the center of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the center and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each deck.

Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 0

Features and Characteristics of Tumbler Screening Machine:

1. Large capacity than normal vibrating screen.
2. The accurate is six stage separation, and screening efficiency is highly from 95% to 99%.
3. Using silicone rubber ball, ultrasonic device such as efficient clean network system.
4. Without blocking mesh net,Sealed dust and safe operation.
5. The acceleration is 4.5 times lower than the vibrating screen,so the screening parts life increase and reduce maintenance.
6. With low noise which is less then 75 db. Optimize the weight balance, foundation dynamic load is low.



Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 1Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 2

                  Pneumatic Lifting Device                                BALANCE IS IMPORTANT !!



Mesh Cleaning Method of Tumbler Screening Machine:

1. Bounce Ball + PU Ring Cleaning

2. Brush Cleaning Device

3. Ultrasonic Technology Cleaning

4. Compressed Air Cleaning Device (Jet Airflow Cleaning)

5. Elastic Scraper Cleaning

6. Jet Airflow + Brush Cleaning



Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 3

Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 4Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 5

Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 6Large Capacity Tumbler Sifter Three Dimensional For Amino Resins Moulding Plastic 7



Technical Parameters of Tumbler Screening Machine:

Model 600 950 1200 1400 1600 1700 2000 2100 2300 2600 2900
Screen Area Per Layer 0.28m2 0.72m2 1.10m2 1.50m2 1.80m2 2.30m2 2.60m2 3.40m2 3.90m2 5.30m2 6.40m2
Net Site Area 0.36m2 1.20m2 1.57m2 2.20m2 2.50m2 3.20m2 3.54m2 4.60m2 5.30m2 6.76m2 8.60m2
Layers 1, 2, 3, 4, 5 1, 2, 3, 4
Cleaning System Options: rubber ball, brush, compressed air, brush and compressed air, ultrasonic, scraper
Motor Drive Power 0.25KW 1.5KW 1.5KW 2.2KW 2.2KW 4.0KW 4.0KW 4.0KW 4.0KW 5.5KW 5.5KW
Height/Weight (mm/kg)
Single Layer

758/

132

987/

350

1223/

420

1359/

810

1484/

820

1371/

900

1534/

920

1441/

1450

1450/

1490

1774/

1525

1488/

1675

2 Layers

837/

142

1106/

400

1381/

480

1498/

880

1642/

890

1510/

980

1692/

990

1580/

1530

1589/

1575

1967/

1660

1627/

1790

3 Layers

916/

152

1225/

450

1539/

520

1637/

950

1800/

960

1649/

1070

1850/

1080

1719/

1650

1728/

1700

2160/

1810

1766/

1940

4 Layers

995/

162

1344/

510

1697/

590

1776/

1030

1958/

1040

1788/

1140

2008/

1150

1858/

1760

1867/

1825

2353/

1960

1905/

2090

5 Layers

1074/

172

1463/

580

1855/

660

1915/

1110

2116/

1120

1927/

1220

2166/

1230

1997/

1890

2006/

1975

2546/

2130

--



Application of Tumbler Screening Machine:

1. Chemical industry: resin pigment, grease, paint, palette etc.
2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid, waste water reclamation etc.
5. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, gravel etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material, metal powder etc.
