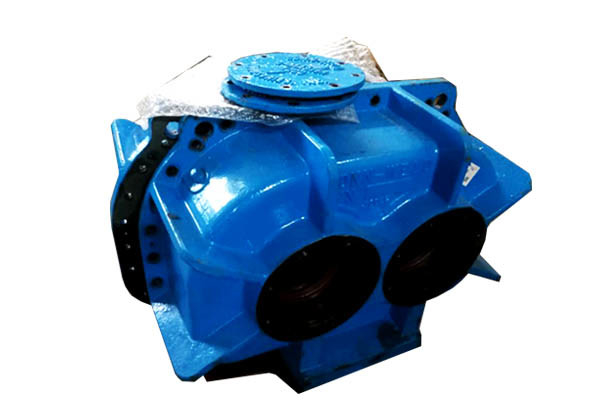

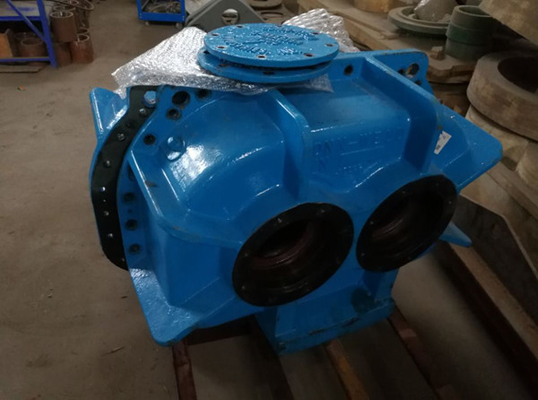

Light Weight Industrial Vibrating Equipment American Type Vibration Exciter

Light Weight Industrial Vibrating Equipment American Type Vibration Exciter

  • Light Weight Industrial Vibrating Equipment American Type Vibration Exciter
  • Light Weight Industrial Vibrating Equipment American Type Vibration Exciter
Light Weight Industrial Vibrating Equipment American Type Vibration Exciter
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Type: American Type Exciter, Replacement Purpose: Can Be Used As A Power Source For Mining Linear Vibrating Screen
Composition: Drive Shaft, Driven Shaft, Eccentric Block, Plug Block, Bearing, Gear Pair, Box Etc. Static Moment: Min. 917 ~ Max. 3466 Kg·cm
Advantages: Light Weight, Small Volume, Simple Structure, Easy Installation And Maintenance, Long Service Life Etc. Characteristics: Stable And Reliable Operation, Flexible Adjustment, Small Maintenance Etc.
High Light:

industrial shaker machine

,

vibration machine industrial

 Light Weight Industrial Vibrating Equipment American Type Vibration Exciter



Working Principle of American Type Vibration Exciter:

The casing of the American type vibration exciter is equipped with a driving shaft 1 and a driven shaft 2. The shaft end has a pair of eccentric block 3 with the same weight. The motor drives the driving shaft and makes the driven shaft do a relatively synchronous rotation through the gear pair 6. The centrifugal inertia force generated by the unbalanced weight rotation makes the exciter produce directional excitation force.

By adjusting the rotation speed of eccentric block and the quantity and position of the weight balancing block, people can change the imbalance rotation weight and then adjust the excitation force and the size of the working torque.

The sealed box is filled with gear oil to lubricate and dissipate the heat of the gears and bearings, ensuring the smooth transmission and reliable operation.

The imported alternative exciter can provide a good excitation screening power. Because of this kind of power is relatively stable, the imported alternative exciter is commonly used as the power source when the mine linear vibrating screen is used for material screening. Through the continuous vibration of the imported alternative exciter, the granular material on the screen surface will be driven to move, and this kind of regular movement can realize the classification of the material. One of the indispensable accessories on the screening machine is the imported alternative exciter, which is one of the power sources of the whole machine, and the amplitude of the equipment has a great influence on the working efficiency.

Light Weight Industrial Vibrating Equipment American Type Vibration Exciter 0

Light Weight Industrial Vibrating Equipment American Type Vibration Exciter 1



Technical Parameter of American Type Vibration Exciter:

Model AEA1000 AEA2000 AEA3000
Static Moment (Kg·cm) min 917 687 1756
max 1730 2562 3466

Weight

(not include shield)

772 1015 1400











Size (mm)

A1 47.5 54 178
A2 174.5 178 178
A3 174.5 178 111
A4 47.5 54 291.5
A4     97.5
B 152 152 152
C 1 (5/8) 1 (7/8) 1 (5/8)
D 289.5 317.5 312
E 897 956 933
F 839 927.5 1153
G 613 647 632
H 311.5 320 318

Characteristics and Advantages of American Type Vibration Exciter:
1. Use the principle of self-synchronization to make the vibrating machinery produce linear vibration.
2. The exciter is fixed on the excited part during work, and the excited part will obtain the required vibration.
3. Lubrication method: Thin oil lubrication.
4. This type of exciter gear box is precision-made, light structure, good seal, fast heat dissipation, and no oil leakage.
5. Durable and reliable, high cost performance, continuous high frequency operation.
6. The motor is installed on the fixed frame on the side (left or right) of the vibration machine. The motor does not participate in vibration. Use a universal joint shaft to connect the motor to the vibrator.
7. Eccentric block is easy to adjust and disassemble.
8. Using good quality bearings or imported bearings, long service life.
9. Both contact and axial labyrinth seals are used for good sealing performance.
10. An oil injection hole is set above the casing to ensure good bearing lubrication.
11. It has the advantages of light weight, small size, simple structure, convenient installation and maintenance, and long service life.
12. It has the characteristics of stable and reliable operation, flexible adjustment, and small maintenance.

Light Weight Industrial Vibrating Equipment American Type Vibration Exciter 2
