| Lifting Component: | Plate Chain | Lifting Height: | Max. 40 Meters |
|---|---|---|---|
| Conveying Capacity: | 15～800 M³/h | Characteristics: | Large Conveying Capacity, Reliable Operation, Good Sealing, Less Pollution, Easy Operation And Maintenance, Low Use Cost |
| Purpose: | Suitable For Vertical Conveying Of Medium, Large And Sharp Materials, And The Material Temperature Is Controlled Below 250℃ | Applicable Materials: | Limestone, Cement Clinker, Gypsum, Lump Coal Etc. |
| High Light: | industrial conveyor belts,bucket elevator conveyor |
||

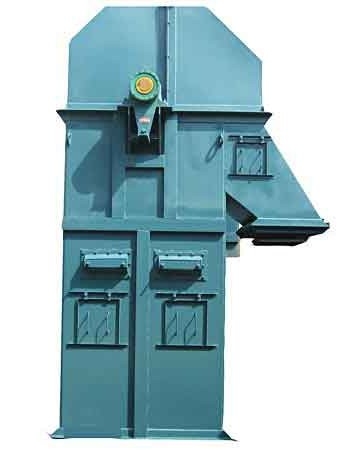

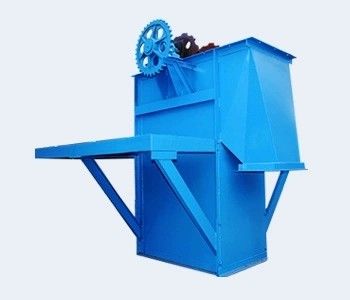

Large Capacity Industrial Conveyor Systems Plate Chain Bucket Elevator
Working Principle of Plate Chain Bucket Elevator :
NE series plate chain bucket elevator adopts inflow type feeding. Material flows into the hopper and is lifted to the top by plate chain, discharging materials automatically under the action of gravity.
Main Structure of Plate Chain Bucket Elevator :
NE Series plate chain bucket elevator consists of running parts, driving device, upper device, central casing and lower device.
Application of Plate Chain Bucket Elevator :
NE plate chain bucket elevator is a kind of plate chain and gravity-induced discharge lifting equipment.
It is suitable for vertical conveying powder, granular, massive, abrasive or non-abrasive materials whose temperature controlled below 250 ℃, such as raw materials, cement, coal, limestone, dry clay, clinker and so on.
Features of Plate Chain Bucket Elevator :
1. Broad lifting range
NE plate chain bucket elevator is widely used in materials with different types, characteristics and fragmentation. It can not only lift the powdery, granular and ordinary bulk materials, but also can lift the strong abrasive or grinding materials.
2. Big lifting capacity
NE plate chain bucket elevator has a variety of specifications from NE15 to NE800. With a lifting range of 15 ~ 800m3/h.
3. Small driving power
NE plate chain bucket elevator adopts inflow type feeding and gravity induction type discharging. It uses intensive arrangement large-capacity hopper to convey. With a low chain running speed and big lifting capacity.
When the material lifting, almost no material feed back phenomenon. Therefore the drive power is low. Theoretical shaft power is 25% ~45% to ring chain bucket elevator.
4. Long service life
NE plate chain bucket elevator adopts inflow type feeding. Extrusion and collision between material rarely occur. The machine is designed to ensure that the material in the feeding, lifting and unloading will not scattered, which prevents abrasive wearing. Conveyor chain uses plate chain high strength wear-resisting chain, extending the service life of the chain and chain bucket.
5. High lifting height
NE plate chain bucket elevator chain runs in low speed, stable operation, and adopts the plate chain high strength wear resistant chain, thus can reach higher lifting height (up to 40m).
6. Good running reliability
Advanced design principle ensures the reliability of machine operation. Trouble-free time is more than 30000 hours. Easy operation, convenient maintenance and less wearing parts.
7. Small structure size
Compared with other types of bucket elevator with the same lifting capacity, the NE plate chain bucket elevator is small in structure size.
8. High machining accuracy
9. Chassis after folding, welding, good rigidity, beautiful appearance.
10. Good sealing, less environmental pollution.
Technical Parameters of Plate Chain Bucket Elevator :
| Model | Maximum Lift Capacity (m3/h) | Maximum Block Material (m) | ||||
| Percentage % | ||||||
| 10 | 25 | 50 | 75 | 100 | ||
| NE15 | 16 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 31 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 165 | 130 | 105 | 80 | 65 | 70 |
| NE200 | 220 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 441 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 | 110 |
| Model | Capacity (m3/h) |
Maximum Size (mm) |
Material Density (t/h3) |
Maximum Lifting Height (m) |
Power Range (kw) |
| NE15 | 10～15 | 40 | 0.6～2.0 | 35 | 1.5～4 |
| NE30 | 18.5～31 | 55 | 0.6～2.0 | 50 | 1.5～11 |
| NE50 | 35～60 | 60 | 0.6～2.0 | 45 | 1.5～18.5 |
| NE100 | 75～110 | 70 | 0.6～2.0 | 45 | 5.5～30 |
| NE150 | 112～165 | 90 | 0.6～2.0 | 45 | 5.5～45 |
| NE200 | 170～220 | 100 | 0.6～1.8 | 40 | 7.5～55 |
| NE30 | 230～340 | 125 | 0.6～1.8 | 40 | 11～75 |
| NE400 | 340～450 | 130 | 0.6～1.8 | 30 | 18.5～90 |
| NE500 | 450～550 | 140 | 0.6～1.8 | 30 | 30～110 |
| NE600 | 550～660 | 150 | 0.6～1.8 | 30 | 37～132 |
| NE800 | 680～830 | 165 | 0.6～1.8 | 30 | ～160 |
