    Detailed Product Description
    Classification By Conveying Angle: Horizontal Screw Conveyor, Inclined Screw Conveyor, Vertical Screw Conveyor Classification By Conveying Form: Shaft Screw Conveyor, Shaftless Screw Conveyor
    Classification By Shape: U-shaped Trough Screw Conveyor, Tubular Screw Conveyor Shaft Screw Conveyor: Suitable For Non-viscous Dry Powder Materials And Small Particle Materials
    Shaftless Screw Conveyor: Suitable For Conveying Sticky And Entangled Materials Application: Suitable For Horizontal Or Oblique Conveying Of Powdery, Granular And Small Block Materials, Such As Coal Mines, Ash, Slag, Cement, Grain Etc.
    Inapplicable Materials: Perishable, Sticky, And Agglomerated Materials Characteristics: Simple Structure, Small Cross Section Size, Good Sealing, Reliable Work, Low Cost, Convenient For Intermediate Loading And Unloading
    High Light:

    industrial conveyor belts

    ,

    bucket elevator conveyor

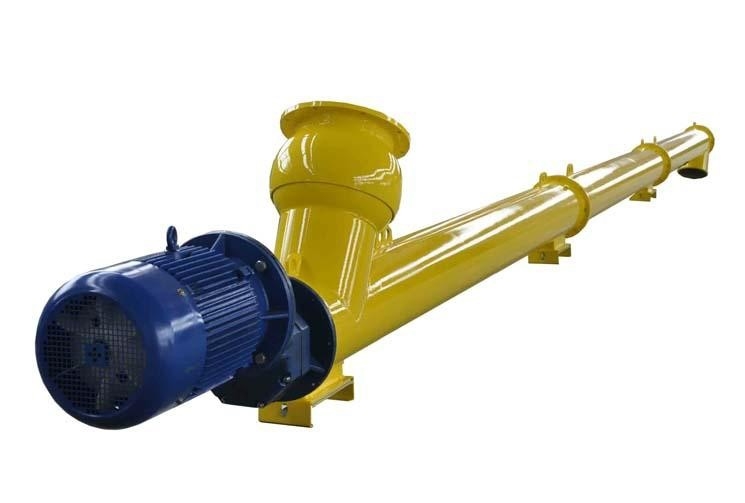

    Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor



    Overview of Screw Conveyor and Feeder:

      The screw conveyor is divided into two types in the form of conveying: the shaft screw conveyor and the shaftless screw conveyor., and it is divided into U-shaped screw conveyor and tubular screw conveyor in appearance. The shaft screw conveyor is suitable for non-sticky dry powder materials and small particle materials (such as cement, fly ash, lime, grain etc.), while the shaftless screw conveyor is suitable for conveying sticky and easily entangled materials. (e.g. sludge, biomass, garbage etc.)



    Classification of Screw Conveyor and Feeder:

    by Conveying Angle horizontal screw conveyor, inclined screw conveyor, vertical screw conveyor
    by Conveying Form shaft screw conveyor, shaftless screw conveyor
    by Shape U-shaped trough screw conveyor, tubular screw conveyor



    Working Principle of Screw Conveyor and Feeder:

      Screw conveyor makes use of rotating screw transfering materials along the fixed casing. The rotating spiral blade moves the material to perform screw conveyance, and the force that makes the material not rotate with the screw blade is the frictional resistance of the material's own weight and the screw conveyor casing to the material. Spiral blades are welded to the rotary shaft of the screw conveyor. The surface shape of the blade has solid surface type, belt surface type, blade surface type and other types according to the different materials being conveyed. The screw shaft of the screw conveyor has a thrust bearing at the end of the material moving direction to give the screw axial reaction force with the material. When the machine length is long, an intermediate hanging bearing should be added.



    Application of Screw Conveyor and Feeder:

      It is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal, grain etc. It is suitable for horizontal or inclined conveying powder, granulated and small lump materials, such as coal, ash, slag, cement, grain etc. Material temperature is less than 200℃.

      Screw conveyor is not suitable for conveying materials those are perishable, big viscosity and easy to agglomerate.

      If conveying angle of inclination is oversize, please choose the GX series screw conveyor.



    Main Features of Screw Conveyor and Feeder:

    1. Large bearing capacity, safe and reliable
    2. Strong adaptability, easy installation and maintenance, long service life.
    3. The machine is small in size, high rotating speed, ensure rapid uniform transfer
    4. Discharge end is equipped with cleaning device, low noise, strong adaptability, inlet and outlet location layout flexibility
    5. Good sealing, the shell adopts the seamless steel tube, the end uses the flange connected to each other as a body, good rigidity.



    Technical Parameter of LS, GX Screw Conveyor and Feeder:

    LS Type 100 160 200 250 315 400 500 630 800 1000 1250
    GX Type     200 250 300 400 500
    Screw Diameter (mm) 100 160 200 250 315 400 500 630 800 1000 1250
    Screw Pitch (mm) 100 160 200 250 315 355 400 450 500 560 630
    Rotating Speed (r/min) 140 120 90 90 75 75 60 60 45 35 30
    Conveying Capacity QΦ=0.33 (m3/h) 2.2 7.6 11 22 36.4 66.1 93.1 160 223 304 458
    Power Pd 1=10m (KW) 1.1 1.5 2.2 2.4 3.2 5.1 4.1 8.6 12 16 24.4
    Power Pd 1=30m (KW) 1.6 2.8 3.2 5.3 8.4 11 15.3 25.9 36 48 73.3
    Rotating Speed (r/min) 120 90 75 75 60 60 45 45 35 30 20
    Conveying Capacity QΦ=0.33 (m3/h) 1.9 5.7 18 18 29.1 52.9 69.8 125 174 261 305
    Power Pd 1=10m (KW) 1.0 1.3 2.1 2.1 2.9 4.1 4.7 6.8 9.4 14.1 16.5
    Power Pd 1=30m (KW) 1.5 2.3 4.5 4.5 7 8.9 11.6 20.4 28.3 42.2 49.5
    Rotating Speed (r/min) 90 75 60 60 45 45 35 35 30 20 16
    Conveying Capacity QΦ=0.33 (m3/h) 1.4 4.8 15 15 21.8 39.6 54.3 97 149 174 244
    Power Pd 1=10m (KW) 0.9 1.2 1.9 1.9 2.5 3.4 4.3 5.4 8.1 9.5 13.3
    Power Pd 1=30m (KW) 1.2 2.2 3.8 3.8 5.4 6.8 9.2 16 24.4 28.6 39.9
    Rotating Speed (r/min) 75 60 45 45 35 35 30 30 20 16 13
    Conveying Capacity QΦ=0.33 (m3/h) 1.2 3.8 11 11 17 31.7 46.5 73.0 99.3 139 199
    Power Pd 1=10m (KW) 0.75 1.1 1.6 1.6 2.1 3.1 3.7 4.6 5.7 7.7 11
    Power Pd 1=30m (KW) 1.1 1.8 3.4 3.4 4.4 5.6 8 14 16.7 23.2 33



    Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 0

    Installation Size Table of LS Screw Conveyor and Feeder:

    Model W A B C D N Q Y L K R S P O H V J T G L
    LS100 2500 100 180 146 10 4 180 190 90 112 180 112 60 178 120 160 14 163 1500
    2000
    2500
    3500-40000
    LS160 2500 160 240 206 10 4 200 190 112 150 200 150 60 270 120 160 14 190
    LS200 3000 200 300 256 14 8 225 190 112 180 225 180 60 308 160 200 14 212
    LS250 3000 250 350 306 14 8 250 190 140 224 250 224 60 336 200 250 18 240 40000-80000
    LS315 3000 315 425 370 14 8 330 190 214 280 390 250 60 443 300 350 20 340
    LS400 3000 400 500 456 14 8 350 190 224 355 390 280 60 533 320 400 24 384
    LS500 3000 500 600 556 14 8 400 190 280 400 400 340 80 662 400 500 24 440 2000
    3500
    3500
    5500-80000
    LS630 3000 630 730 686 14 8 450 190 355 500 450 420 80 763 500 630 24 555
    LS800 3000 800 920 868 18 16 550 340 450 630 550 520 80 970 632 800 30 650
    LS1000 3000 1000 1120 1068 18 16 650 360 560 710 650 630 80 1190 710 1000 30 760 6000-60000
    LS1250 3000 1250 1370 1318 18 16 800 380 710 800 800 760 80 1440 800 1250 30 910



    Technical Parameters of GX Screw Conveyor and Feeder:

    Specification Main Technical Performance Driving Device Driving Device Weight
    (kg)
    Model Length
    (mm)
    Capacity
    (cement)
    (t/h)
    Rotating Speed
    min-1
    Reducer Motor
    Model Speed Ratio Power
    (kw)
    GX200 -10 9 60 ZQ250 23.34 1.1 726
    GX200 -20 9 60 ZQ250 23.34 1.5 1258
    GX250 -10 15.6 60 ZQ250 23.34 2.2 960
    GX250 -20 15.6 60 ZQ250 23.34 3 1750
    GX300 -10 21.2 60 ZQ350 23.34 3 1373
    GX300 -20 21.2 60 ZQ350 23.34 4 2346
    GX400 -10 51 60 ZQ400 23.34 5.5 1911
    GX400 -20 51 60 ZQ500 23.34 11 2049
    GX500 -10 87.5 60 ZQ400 23.34 7.5 2381
    GX500 -20 87.5 60 ZQ650 23.34 18.5 5389
    GX600 -10 134.2 45 ZQ750 23.34 22 3880
    GX600 -10 134.2 45 ZQ850 23.34 55 7090



    Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 1Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 2

                 GX Tubular Screw Conveyor            LS U-shaped Trough Screw Conveyor (Closed & Open)



    Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 3Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 4

              Double Helix Screw Conveyor                    Multiple Discharge Holes Screw Conveyor



    Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 5Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 6

                                                          Shaftless Screw Conveyor





    Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 7Bulk Materials Industrial Conveyor Systems Horizontal Tube Screw Conveyor 8

                            Inclined Screw Conveyor                           Vertical Screw Conveyor
