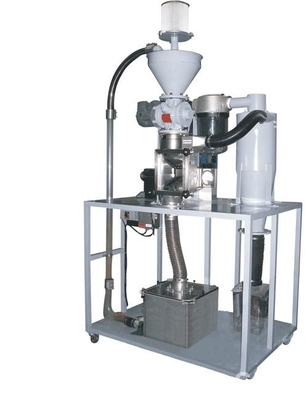

Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying

Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying

    • Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying
  • Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying

    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015
    Model Number: AK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Fumigation-free plywood wooden case for export
    Delivery Time: 20~30 work days after order confirmed
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Features: Small Size, Light Weight, No Moving Parts, Quick Disassembly Structure, Easy To Clean Power Source: Compressed Air
    Vacuum Degree: -2.6~ -18Kpa Pipe Inner Diameter: 13mm~121mm
    Advantages: Continuous Transmission, Maintenance-free, Low Noise, Dust-free Operation, Safety Explosion-proof, No Clogging Structural Composition: Hopper, Transmission Pipeline, Material Tank, Control Box, Moisture Separator, Air Storage Tank
    High Light:

    vibrating screen feeder

    ,

    electromagnetic vibratory feeder

    Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying



    Working Principle of Pneumatic Vacuum Feeder:

    The electromagnetic valve controls the compressed air into the suction feeding tube directly. The compressed air accelerates the flow to produce negative pressure, and the material is sent to the feed cylinder. The air is discharged from the filter to achieve continuous conveying of materials.

      Vacuum degree can be achieved (suction): -2.6~ -18Kpa

      Various specifications.

      Pipe inner diameter 13mm~121mm.



    Characteristics of Pneumatic Vacuum Feeder:

    1. It is simple, fast and efficient to realize remote, continuous and ongoing transmission of materials.

    2. Maintenance-free, no moving parts and low noise.

    3. Dust-free operation, safety explosion-proof.

    4. The conveying process does not damage the material.

    5. No clogging during conveying.

    6. Small size, light weight, quick disassembly structure, easy to clean.

    7. Pneumatic feeding conveyor with high output . Max capacity 800kg/h to convey plastic granules.
    8. Stainless steel 304 composition.Replace Vacuum Feeder completely.
    9. Driven by compressed air.No electricity, no electrical interference,low noise.

    10. Compressed air:0.8m3/min,An air compressor can connect several pneumatic conveyors.

    11. Mechanical controls automatically feeding,whatever the temperature is,it has no effects on the control function.

    12. Wide application,it can conveyor plastic granules etc.



    Structure of Pneumatic Vacuum Feeder:

    Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying 0

    1. air inlet     2. ring hyperbaric chamber

    3. high speed flow through nozzle    4. inlet (vacuum)



    Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying 1

    Technical Parameters of Pneumatic Vacuum Feeder:

    Model Compressed Air Consumption Rate Vacuum Degree
    SCFM SLPM (L/min) H2O kPa
    AK-10 10.7 303 -72 -18
    AK-20 14.7 416 -42 -11
    AK-30 25.9 733 -42 -11
    AK-40 33 934 -36.8 -9
    AK-50 45 1274 -28.5 -7
    AK-60 58.5 1656 -23.5 -6
    AK-70 68.5 1939 -14.7 -4
    AK-80 95 2690 -13.6 -3.4
    AK-90 128 3625 -10.5 -2.6



    Food Grade Pneumatic Vacuum Feeder Small Size For Whole Milk Powder Conveying 2
