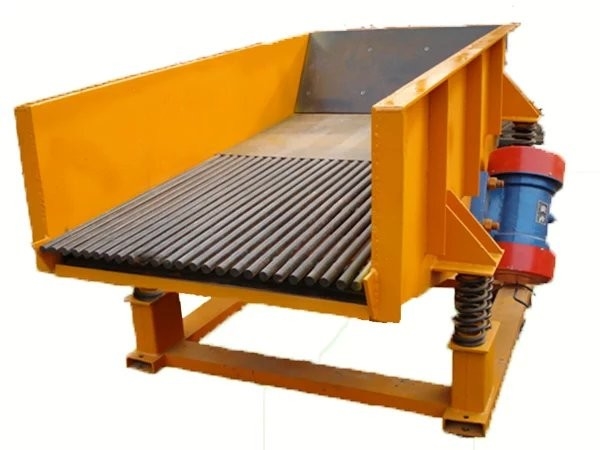

High Efficiency Vibrating Grizzly Screen Nonferrous Metal Ore Grizzly Feeder

High Efficiency Vibrating Grizzly Screen Nonferrous Metal Ore Grizzly Feeder

  • High Efficiency Vibrating Grizzly Screen Nonferrous Metal Ore Grizzly Feeder
High Efficiency Vibrating Grizzly Screen Nonferrous Metal Ore Grizzly Feeder
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Feeding Surface: Blind Plate + Bar Grizzly Screen Bar Grizzly: Bar Grizzly Gap Adjustable
Excitation Source: Vibrating Motor Characteristics: Large Capacity, Simple Structure, Easy Maintenance, High Strength, Impact Resistance, Wear Resistance, Low Noise
Structural Composition: Vibration Motor, Body, Damping Spring, Bracket Etc. Application: Suitable For Feeding Of Coarse Or Medium Crushed Ferrous Or Non-ferrous Metal Ore And Building Stone
High Light:

electromagnetic vibratory feeder

,

vibrating grizzly screen

High Efficiency Vibrating Grizzly Screen Nonferrous Metal Ore Grizzly Feeder



Overview of Grizzly Vibrating Feeder:

The grizzly adopts the blind plate and grizzly bar form of feeding surface, suitable for large block materials evenly feeding before crushing, especially suitable for black or non-ferrous metal ore and building stone feeding before coarse crushing or intermediate crushing.

  The grizzly bar gap is adjustable. It can separate the dirt and secondary crushed material at the same time of feeding, effectively play the function of the following crusher.

  It has some characteristics such as simple structure, convenient maintenance, big capacity, high strength, impact resistance, wear resistance, low noise, long service life and so on.

  This machine has six specifications. It is used in large-block material evenly feeding and separation before crusher, especially suitable for feeding and primary screening hydropower industry, building stone and black or non-ferrous metals, ore before coarse crushing. This series of vibrating feeder adopts vibration motor as the vibration source.



Product Structure of Grizzly Vibrating Feeder:

Grizzly vibrating feeder is mainly consist of excitation source (vibration motor), the body, damper spring, front and rear bracket etc.

1. Vibration motor: vibration motor is one of the new type of vibrator combined with power source and vibration source. High

efficiency and energy saving, big vibration force, work reliability, simple adjustment, convenient maintenance etc.

2. Body: plate and profile are welded together. Materials will be transfered into crusher through vibration conveying.

3. Damper spring: usually adopt metal helical spring or rubber spring, make the body produce elastic vibration, decrease vibration

load transfering to the foundation or structure frame.

4. Bracket: plate welded, to support the body.



Precautions of Grizzly Vibrating Feeder:

1. Equipment shall not start the vibration motor in the case of no conforming to the requirements.

2. It is strictly prohibited to any lengthening and shortening the grizzly feeder body, and it is not allowed to use the grizzly feeder

without installing the damper spring.



Spare Parts of Grizzly Vibrating Feeder:

1. spring (metal spring, rubber spring); 2. lining board; 3.vibration motor



High Efficiency Vibrating Grizzly Screen Nonferrous Metal Ore Grizzly Feeder 0

T   Technical Parameters of Grizzly Vibrating Feeder:



Model

Overall Dimensions

(width*length)

Angle of Dip

(°)

Max Feed Size

(mm)

Double Amplitude

(mm)

Vibration Frequency (L/min)

Capacity

(t/h)

Vibration Motor
Model Power(kw)
GZT-936 36"×12' -5~0 220 11±1 800 200-220 Y180M-4 18.5
GZT-1248 46"×16' -5~0 300 11±1 800 250-280 Y180L-4 22
GZT-1548 60"×16' -5~0 300 11±1 700 320-350 Y200L-4 30
GZT-1560 60"×20' -5~0 300 11±1 700 320-350 Y200L-4 30
GZT-1660 63"×20' -5~0 300 11±1 700 350-280 Y200L-4 30
GZT-1848 70"×16' -5~0 300 11±1 700 350-280 Y200L-4 30
