    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015
    Model Number: ZWS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
    Delivery Time: 30~35 work days after order confirmed
    Payment Terms: T/T, L/C
    Supply Ability: 5 sets per month
    Contact Now
    Detailed Product Description
    Features: No Mesh Blocking, With Strong Sieve Surface Self-cleaning Ability, High Screening Efficiency And Large Processing Capacity Movement: The Screen Box Does Not Vibrate, And Only The Screen Mesh Vibrates
    Purpose: Very Suitable For Screening Of Fine Particle Materials Screen Surface: The Screen Is Composed Of Three Layers Of Woven Mesh, Or Single Layer Mesh Of Coarse Silk
    Screen Angle: Can Be Easily Adjusted To Meet The Nature Of Materials And Different Screening Operations Application: Chemical And Compound Fertilizer Industry, Ore Dressing (iron Ore, Quartz Sand, Kaolin Etc.), Dewatering (coal Slime Dewatering, Tailings Dry Dewatering, Gold Ore Powder Carbon Recovery And Dehydration Etc.), Dry Material Sieve Etc.
    High Light:

    inclined vibrating screen

    ,

    dewatering vibrating screen

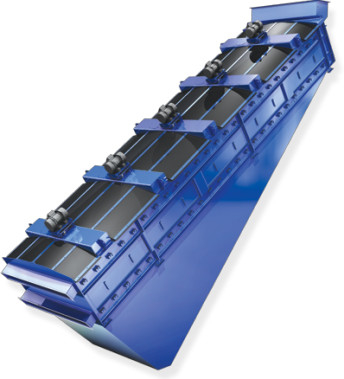

    High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment



    Overview of Vibrating Wire Cloth Screen Machine:

    Vibrating wire cloth screen machine is a new type of screening equipment. The screen body does not vibrate, and only the screen mesh vibrates. With small dynamic load, low power consumption, high screening efficiency and large processing capacity, it is widely used in chemical and compound fertilizer industry, ore dressing (iron ore, quartz sand, kaolin etc.), dewatering (coal slime dewatering, tailings dry dewatering, gold ore powder carbon recovery and dehydration etc.), dry material sieve etc.



    Features of Vibrating Wire Cloth Screen Machine:

    1. The sieve surface vibrates, while the screen box does not.

    2. No mesh blocking. With strong sieve surface self-cleaning ability, high screening efficiency and large processing capacity.

    3. It is very suitable for screening of fine particle materials.

    4. The screen is composed of three layers of woven mesh. And the composite screen has a high opening rate. The screen can also use single layer mesh of coarse silk.

    5. The screen installation angle can be easily adjusted to meet the nature of materials and different screening operations.



    Technical Parameters of Vibrating Wire Cloth Screen Machine:

    Model Screen Surface  Feeding  Particle Size (mm)

    Capacity

    (t/h)

    Vibration   Frequency  (min-1) Double   Amplitude  (mm)    Power
    (kw)
    Dimensions
    (mm)
     Weight
    (kg)
     Layers   Area  (m2)  Dip   Angle  (°)      Mesh  Size
    (mm)
     Structure
    ZWS1230 1 3.6 37 10*40 woven ≤60 30~35 1450 3~5 0.85*2  3090*1700*3169  1623
     2ZWS1230  2 3.6 33  Upper:  4*50
    Lower: 1.4*50
    woven ≤60 30~35 1450 3~5 0.85*2 3301*1680*3300 2300
    ZWS1245 1 5.4 37 Upper: 4*50
    Lower: 1.4*50
    woven ≤60 45~60 1450 3~5 0.85*3 4350*1660*5066 2631
    2ZWS1245 2 5.4 37 Upper: 4*50
    Lower: 1.4*50
    woven ≤60 45~60 1450 3~5 0.85*3 4496*1660*5648 3612
    ZWS1260 1 7.2 20 4*25 woven ≤60 60~90 1450 3~5 0.85*4 6576*1660*4240 3290
    2ZWS1260 2 7.2 37 Upper: 4*50
    Lower: 1.4*50
    woven ≤60 60~90 1450 3~5 0.85*4 5678*1660*6156 4532



    High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 0High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 1

                                                         Motor Vibrating Mesh Screen



    High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 2High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 3

                                                    Electromagnetic Vibrating Mesh Screen
