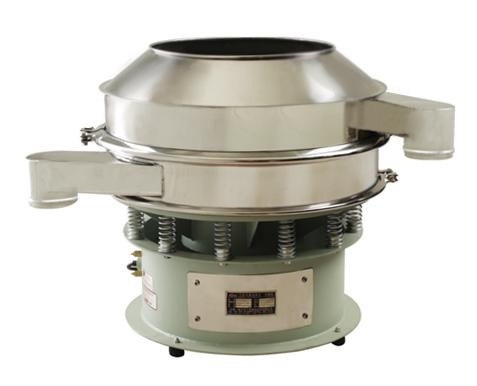

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design

  • Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design
Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Movement: Three Dimensional Vibration Drive Device: One Set Of Verticle Vibrating Motor
Purpose: Suitable For Ceramic, Paint And Other Liquid Slurry Filter Mesh Material: Stainless Steel 304, 316L Etc.
Body Material: Carbon Steel, Stainless Steel 304, 316L Etc. Feature: With Raised Rim Inlet Design
High Light:

wet screening equipment

,

sieve separator machine



Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design



Instruction of Rotary Vibrating Screen with Raised Rim Inlet Design​:

Separate solids from liquids or segregate dry materials into various sizes. Particles as fine as 400 mesh (37 microns) can be screened. No special flooring or foundation is needed and less working floor space is required. Simple and efficient design requires less horsepower. Other features include long screen life and ease with which screens may be changed.

Working Principle of Rotary Vibrating Screen with Raised Rim Inlet Design​:
  Vibrating separator is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
  The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be change by adjusting the phase angle on both top and bottom parts.

Advantages of Rotary Vibrating Screen with Raised Rim Inlet Design​:
1. Semi-cover design, no liquid splash and also easy for check sieved material
2. China or imported brand of vibration motor meet different market
3. The discharge ports could be rotated and are most adoptable to product line.
4. The design is exquisite and durable, any mucus, slurry all can be screened.

Application of Rotary Vibrating Screen with Raised Rim Inlet Design​:
  Screening: divide solid particles into different size of particle groups. It can also continually and accurately sort them into more than one level with multi-screen.
  Screening out the impurities: remove the lower percentage content of large particles or small particles in high volume processing.
  Solid-liquid separation: quickly remove the non-soluble substances out of various types of slurry. It is suitable for ceramic, paint and other liquid slurry filter.



Overview of Multi-deck Rotary Vibating Screen Separator:

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 0



  The multi-deck rotary vibating screen separator is also called round separator, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  This kind of screening machine does three-dimensional motion. It can be used in food, medicine, chemical industry, metals, mining, abrasive, ceramics, pigments, coatings, electronic materials, pollution treatment and other industries for wet and dry screening, sieving, grading, classification, filtering, cleaning, de-dusting, impurity removal, lump breaking, quality control and so on.



Working Principle of Multi-deck Rotary Vibating Screen Separator:

  Multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface.

  Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

  The general characteristics of the vibrator adjustment are described below:

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 1



Structure Diagram of Multi-deck Rotary Vibating Screen Separator:

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 2

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 3



Features of Multi-deck Rotary Vibating Screen Separator:

1. High efficiency, refined design and durability. Any powder and mucus can be sieved.

2. Easy to replace the screen, simple operation and convenience cleaning or washing.
3. The mesh is not blocked. No powder flying. And it can be sieved to 500 mesh or 0.028mm.

4. Impurities and coarse materials are automatically discharged and can be continuously operated.

5. Unique screen flame design. The service life of screen is long. Only 3~5 minutes to replace the screen.

6. Small size, not occupying space, and easy to move.

7. The screen of the machine can reach up to 5 layers, but 3 layers are recommended.



Basic Function of Multi-deck Rotary Vibating Screen Separator:

Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 4

         Grading & Sieving                     Impurity Removal                  Solid-liquid Separation





1. fine grading, control particle size range

Separating and screening of different particle sizes solid particle group with narrow particle size range



2. multi-group classification, control particle size range

Separating and screening of solid particle groups with different particle sizes, can be divided into five groups at the same time



3. coarse screening

Separating and screening large particles or ultra fine particles, and achieving high productivity



4. fluffy powder

According to the process requirement, the powder can be fluffy, so that the powder can be mixed into the air, easy to mix other materials



5. filtration and product recycling

It can be used to filter out the large particles in various slurry, or to dehydrate the solid-liquid mixture, or to recycle useful solid particles



6. wastewater purification and water pollution control

It can efficiently recycle useful solid particles and purify water for reuse



Technical Parameters of Multi-deck Rotary Vibating Screen Separator:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 5

Overall Dimensions of Multi-deck Rotary Vibating Screen Separator:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of Multi-deck Rotary Vibating Screen Separator:

Chemical Industry: PVC, citric acid, electrode materials, resin fertilizer, urea-formaldehyde molding powder, cosmetics, oil paint etc.



Pharmaceutical Industry: lactose, glucose, vitamins, traditional chinese medicine powder, preparations etc.



Metal and Mining Industry: alloy powder, molybdenum powder, stainless steel powder, tungsten powder, aluminum powder, nickel powder, cobalt powder, alumina, glass beads, graphite, kaolin, mineral salts etc.



Abrasive and Coating: aluminum silver paste, powder coating, iron oxide red, laser powder, pearlescent pigment, paper making coating, organic pigment carbon powder etc.



Electronic Materials: fluorescent powder, artificial black lead etc.



Food Industry: wheat bread, bread flour, sugar powder, milk powder, starch, juice, vegetable juice, monosodium glutamate, spices, yeast, seasoning, tofu, ice cream, chocolate powder, potato powder etc.



Pollution Treatment: waste oil and papermaking effluent, effluent from brewery waste water, dyeing and finishing wastewater, activated carbon etc.



Aluminum Silver Paste Solid Liquid Separator With Raised Rim Inlet Design 6
