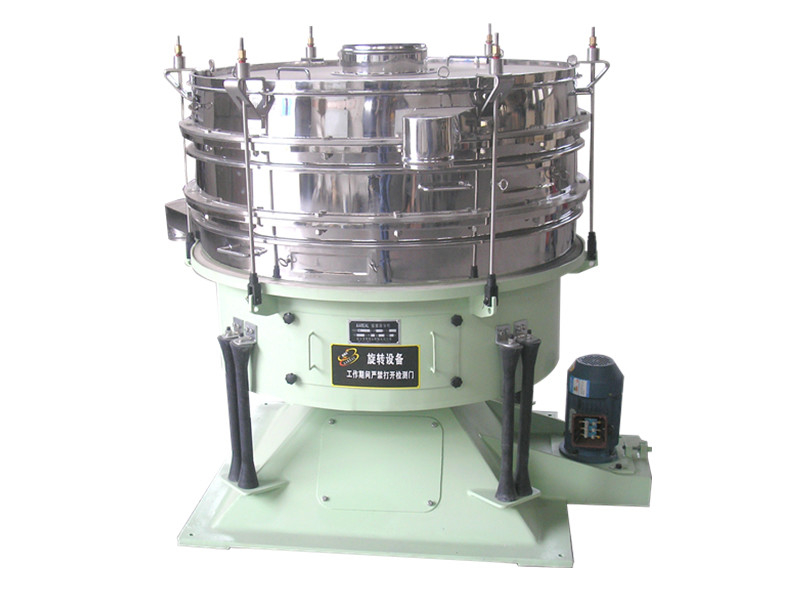

Overview of Multi-deck Tumbler Screening Machine:

Multi-deck tumbler screening machine for fine particle materials is also called tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc. The simplest sieving is using your hands with the staring of your eyes. Tumbler screening machine is the mechanical simulation for this.

   Swinging sieve is the most effective screening machine that simulates the principle of artificial screening. The screening accuracy, efficiency and screen service life are 5~10 times of regular round vibrating sieve machine. It conforms to all fine and ultra-fine powder and granular materials, especially suitable for materials which are difficult to classify.

   Multi-deck tumbler screening machine is often used to screen xylitol, food additives, citric acid, EPS, PAA, PVC, glass beads etc.



Working Principle of Multi-deck Tumbler Screening Machine:

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 0



   The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.

   According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 1

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 2Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 3



Screen Parameter Control Diagram of Multi-deck Tumbler Screening Machine:

Only recording the best running setup parameters, you can reproduce the best operation at any time to ensure the quality of your products.

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 4

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 5



Date:                                   Material: PVC Powder

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 6



Min-1                                   220

Radial Direction     R     8

Tangent Direction  T     2

Eccentricity            E    35



Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 7

                                                BALANCE IS IMPORTANT !!



Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 8

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 9

                                                        Pneumatic Lifting Device



Application of Multi-deck Tumbler Screening Machine:

Chemical, food and spices, plastics and Synthetic Resin, mining, medicine, wood and plywood, metallurgy, feed, rubber, fodder, fertilizer, sugar, salt, renewable industry and so on.



Features of Multi-deck Tumbler Screening Machine:

1. Soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity. It is the best choice for material that is flammable, explosive and easy to generate static. And effectively extend the life of equipment parts.

2. with circular building block type assembling structure, easy assembly and disassembly. The discharge port is free to rotate 360 degrees.

3. Can be used up to 7 layers, can produce up to 8 particle sizes.

4. The screen structure is diverse. It can be not only spliced, but also integrally bonded.

5. The vertical direction acceleration value of the material particles is low, so that the screen mesh is not easy to damage, prolonging the service life of the screen.

6. large-scale screening machine can be installed pneumatic lifting device to reduce the difficulty of screen replacement.

7. he noise is low to 75dB. Fully enclosed and more environmentally friendly.



Mesh Cleaning Method of Multi-deck Tumbler Screening Machine:

1. Bounce Ball + PU Ring Cleaning

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 10



2. Brush Cleaning Device

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 11Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 12

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 13



3. Compressed Air Cleaning Device (Jet Airflow Cleaning)

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 14



4. Jet Airflow + Brush Cleaning

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 15Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 16



5. Elastic Scraper Cleaning

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 17



6. Ultrasonic Technology Cleaning

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 18Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 19



Technical Parameters of Multi-deck Tumbler Screening Machine:

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 20



Model 600 950 1200 1400 1600 1700 2000 2100 2300 2600 2900
Screen Area Per Layer 0.28m2 0.72m2 1.10m2 1.50m2 1.80m2 2.30m2 2.60m2 3.40m2 3.90m2 5.30m2 6.40m2
Net Site Area 0.36m2 1.20m2 1.57m2 2.20m2 2.50m2 3.20m2 3.54m2 4.60m2 5.30m2 6.76m2 8.60m2
Layers 1, 2, 3, 4, 5 1, 2, 3, 4
Cleaning System Options: rubber ball, brush, compressed air, brush and compressed air, ultrasonic, scraper
Motor Drive Power 0.25KW 1.5KW 1.5KW 2.2KW 2.2KW 4.0KW 4.0KW 4.0KW 4.0KW 5.5KW 5.5KW
Height/Weight (mm/kg)
Single Layer

758/

132

987/

350

1223/

420

1359/

810

1484/

820

1371/

900

1534/

920

1441/

1450

1450/

1490

1774/

1525

1488/

1675

2 Layers

837/

142

1106/

400

1381/

480

1498/

880

1642/

890

1510/

980

1692/

990

1580/

1530

1589/

1575

1967/

1660

1627/

1790

3 Layers

916/

152

1225/

450

1539/

520

1637/

950

1800/

960

1649/

1070

1850/

1080

1719/

1650

1728/

1700

2160/

1810

1766/

1940

4 Layers

995/

162

1344/

510

1697/

590

1776/

1030

1958/

1040

1788/

1140

2008/

1150

1858/

1760

1867/

1825

2353/

1960

1905/

2090

5 Layers

1074/

172

1463/

580

1855/

660

1915/

1110

2116/

1120

1927/

1220

2166/

1230

1997/

1890

2006/

1975

2546/

2130

--

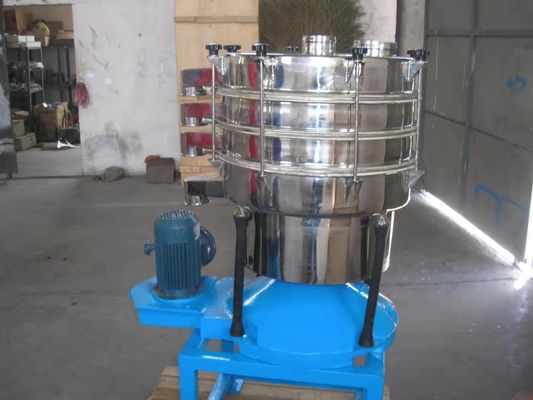

Delivery & Site Photos of Multi-deck Tumbler Screening Machine:

Multi Deck Tumbler Screening Machine Tumbler Sifter For Fine Particle Materials 21
