Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Features: Low Noise, Multi-deck Screening, Large Capacity, Easy To Clean And Install Etc. Other Names: Linear Vibrating Sieve, Rectangular Separator, Horizonal Vibrating Screen Etc.
Power Source: Double Vibrating Motors Movement: Linear Movement
Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc. Screen Surface: Horizontal Or Slanted, Inclination Angle 0°~7°
Mesh Deblinding Device: Rubber Balls, Ultrasonic Deblinding System Etc. Applicable Materials: Chemical Fertilizer, Urea, Fodder, Plastic Particle, Limestone, Tea, Lysine Etc.
High Light:

linear motion vibrating screen

,

horizontal vibrating screen



Multi Layer Linear Motion Vibrating Screens Wood Pellets Screening Equipment



Introduction of Multi-layer Linear Motion Vibrating Screens for Wood Pellets​:

The Multi-layer Linear Motion Vibrating Screens for Wood Pellets adopts double vibrating motors as power source, with the specific working mode of these two motors make the materials be thrown up on the sieve and go forward in a straight line. It can be equipped with single or multi-decks to achieve different purposes like grading, removing impurity, removing dust, testing, washing selecting, dehydration and so on.

   The rectangular separator can also be called linear vibrating screen, linear vibrating sieve, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.



Structure of Multi-layer Linear Motion Vibrating Screens for Wood Pellets​:

The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Working Principle of Multi-layer Linear Motion Vibrating Screens for Wood Pellets:

  The AZ series linear vibration screener machine use vibration motor as vibration source, the material is rosed and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed.

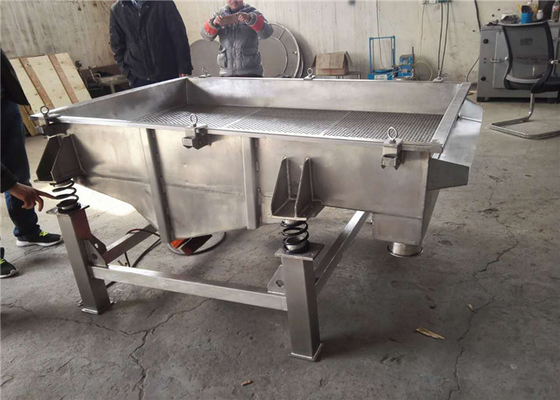

Multi Layer Linear Motion Vibrating Screens Wood Pellets Screening Equipment 0

Important Information About Multi-layer Linear Motion Vibrating Screens for Wood Pellets:

Other Names linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
Shape rectangular shape
Motion linear motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The more layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.
Mesh Deblinding System bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L, titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.



Technical Parameters of Multi-layer Linear Motion Vibrating Screens for Wood Pellets:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



Features of Multi-layer Linear Motion Vibrating Screens for Wood Pellets​:

1. Simple structure, large screening capacity.
2. Sealed structure, no dust flying.
3. Bounce balls could prevent the mesh from be blocked through jumping from up to down.
4. Robust construction for improved fatigue life.
5. Single layer or multi-layer are both available, can be installed 7 layers at most.
6. Manufactured in standard models or as per customer requirement.



Application of Multi-layer Linear Motion Vibrating Screens for Wood Pellets​:

1. Ceramic industry: Alumina, quartz sand, slurry, glaze and pigment etc.
2. Chemical industry: Resin, powder, paint, fine powder, soda, citric acid etc.
3. Foodstuffs industry: Sugar, salt, alkali milk, powder, soybean milk, yeast etc.
4. Pharmaceuticals industry: Chinese medicine powder, western medicine powder etc.
5. Paper making industry: Black and white liquid paper, pulp, waste water recycle etc.
6. Metallurgy: Metal powder, welding rod powder etc.
7. Pollutant treatment: Rubbish waste, oil animal, droppings etc.

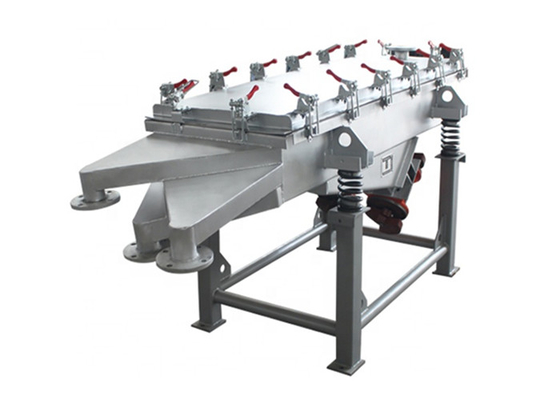

Multi Layer Linear Motion Vibrating Screens Wood Pellets Screening Equipment 1Multi Layer Linear Motion Vibrating Screens Wood Pellets Screening Equipment 2
