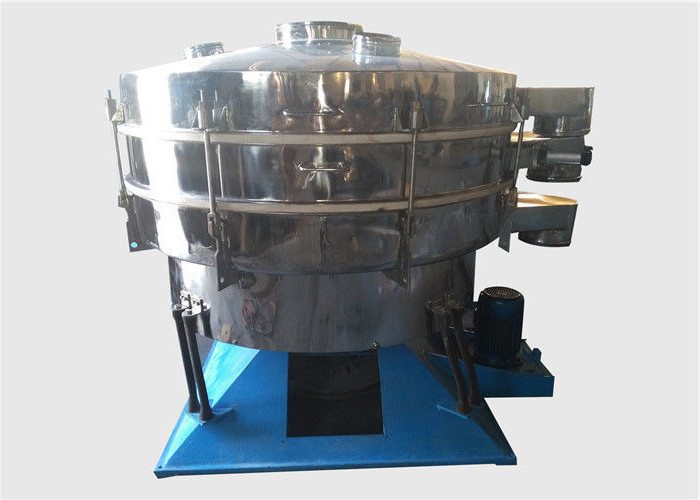

High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator

High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator

  • High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator
  • High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator
High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Screening Accuracy: High Upto 90%~99.9% Machine Diameter: 600, 800, 1000, 1200, 1500, 1800, 2000, 2300mm
Characteristics: Large Capacity, High Accuracy, Dust-proof, Longer Screen Service Time Etc. Mesh De-blinding: Ultrasonic De-blinding System, Bouncing Balls, Rolling Brush, Air Brush Etc.
Layers Of Screen: 1~5 Layers Of Mesh Screens Spare Parts: Screens, Silicone Balls,rubber Balls, Rubber Spring, Sealing Rubber Strip Etc.
Application: Xylitol, Activated Carbon, PVC Powder, Calcium Carbonate Etc. Motor: ABB, Siemens Or Other Brands, Ordinary Motor Or Explosion-proof Motor
High Light:

Silver Crystals Tumbler Screening Machine

,

600mm Tumbler Screening Machine

,

Silver Crystals Vibratory Screen Separator

High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator



Introduction of High Output Tumbler Vibrating Screener Machines for Silver Crystals:

High Output Tumbler Vibrating Screener Machines for Silver Crystals is a low frequency and high efficiency rotary vibrating screen which simulate manual hand shaking motion. The working principle of tumbler screen is instantaneous movement of the radial direction displacement and circular motion with this radial displacement as the axis (spiral motion), the exciter generates of swing tumbler screen nonlinear three dimensional motion, the materials also generates similar motion of manual operation, and achieve separating purpose.



Working Principle of High Output Tumbler Vibrating Screener Machines for Silver Crystals:

The tumbler screener machine is a mechanical with simulation of that. The tumbler screen machine successfully simulates the effective principle of manual screening movement (screening accuracy, efficiency and screen’s work life is 5-10 times than the conventional round screen), and it also conforms to all fine and ultra-fine range of powder and particulate materials, especially for difficult to handle materials.



High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 0High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 1



Technical Parameters of High Output Tumbler Vibrating Screener Machines for Silver Crystals:

High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 2

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



Advantages of High Output Tumbler Vibrating Screener Machines for Silver Crystals:

1. Up to 5 times the output per unit area; accurate to 6-level separation, screening efficiency up to 90% -99%.
2. Using high-efficiency screen cleaning device system such as silicone rubber ball and ultrasonic, the screen mesh will not be blinded, and the screening efficiency and capacity will be effectively improved. Sealed dust removal for safe operation
3. Adding a pneumatic lifting device is a fast screen changing device designed for frequent change of particle size and material. It can be changed quickly and easily without the need of other lifting equipment.



High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 3High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 4

               BALANCE IS IMPORTANT !!                              Pneumatic Lifting Device



Important Information About High Output Tumbler Vibrating Screener Machines for Silver Crystals:

Motion involute spiral motion
Screening Accuracy upto 90%~99.9%
Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.
Mesh Cleaning Method bouncing ball cleaning, ultrasonic de-blinding system, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure whole adhesive screen, or splicing segmented screen etc.
Layers of Screen 1~5 layers of screen
Diameter 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional quick clamps, pneumatic lifting devices etc.
Application can be used for material that is flammable, explosive and easy to generate static
Motor Brand Siemens, ABB, BEGEMA etc.
Surface Treatment polishing, sandblast, paint spraying etc.



Application of High Output Tumbler Vibrating Screener Machines for Silver Crystals:

1. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
2. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
3. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.



High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 5High Output Tumbler Screening Machine , Silver Crystals Vibratory Screen Separator 6
