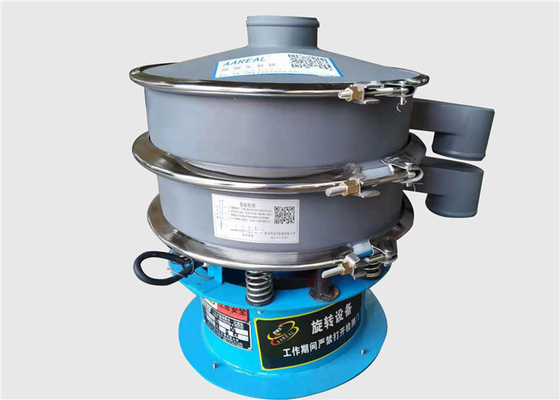

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment

  • Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment
  • Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment
Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Other Names: Rotary Vibrating Screen, Rotary Vibrating Sieve, Round Separator, Vibro Screen Etc. Function: For Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.
Drive Device: One Set Of Verticle Vibrating Motor Movement: Three Dimensional Motion
Screen Frame: L Type, Adhesive Type, Ultrasonic Type (internal And External Transducer) Etc. Mesh Cleaning Method: Bouncing Balls, Ultrasonic Device, Rotary Brush System Etc.
Characteristics: Small Size, Outlet Can Be Adjustable In The Range Of 360°, Can Be Equipped With Anti-blocking Device Etc. Optional Device: Quick Release Clamp, Magnetic Guard, Discharge Gate Etc.
High Light:

vibro sieve machine

,

round separator

Overview of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

The rotary vibrating sieve machine for pearlescent pigment is also called rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  The three dimensional vibrating screen filter has imported high quality stainless steel and general steel manufacturing, but also according to customer needs to use non-metal and other special manufacturing materials.The machine can be specially made of non-metal and other materials according to customers' needs.

  Rotary vibration screen is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly replace the screen. The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening etc.

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment 0

Important Information You May Concern About Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

Model AY
Shape round
Layers of Screen 1~5 screen decks
Mesh Size above 325 mesh
Screen Frame L type, adhesive type, ultrasonic type (transducer internal and external) etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material carbon steel, stainless steel 304, 316L etc.
Function grading, solid-separation, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring galvanized steel spring etc.
Motor verticle vibrating motor
Motor Brand China Made, OLI-WOLONG etc.
Optional quick release clamp, magnetic guard, discharge gate etc.



Working Principle of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

  The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface.

  Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment 1

  The general characteristics of the vibrator adjustment are described below:

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment 2



Structure Diagram of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment 3

Features of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

1. The range of screening is the widest: from small to 500 mesh (28 μm), and from small to 5 mm for efficient screening and filtration.
2. The mesh is not blocked: the design of the company's automatic cleaning and plugging device to minimize the probability of blocking the network.
3. Single or multi-layer separation: three dimensional vibrating screen filter can choose one to five layers of mesh, can be two to six levels of separation or filtration.
4. High efficiency and accurate screening: all incoming materials are automatically discharged and there is no stock in the machine.
5. Convenient replacement of the screen: three dimensional vibrating screen filter according to different needs have a variety of network structure; one of them can reduce the time of replacing the screen to 3 ~ 5 minutes, so the screen life is longer and the efficiency is higher.
6. Vibration without mechanical conduction: the three dimensional vibration generated by the new vibration source of the three-dimensional vibration screen filter is strong and stable, and the equipment can be installed to any desired position and easy to move.
7. Economic and environmental protection: long life of the whole machine and screen, low energy consumption, low noise, completely closed, outstanding environmental performance.



Basic Function of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment 4

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.



2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



Technical Parameters of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

Fine And Efficient Rotary Vibrating Sieve Machine for Pearlescent Pigment 5

Overall Dimensions of Rotary Vibrating Sieve Machine for Pearlescent Pigment​​:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

  Many kinds of the materials within 0~400 mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600 mesh like liquid and pasty materials can be screened by the machines. Details are as follows:
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water , food waste water and waste water processing.
8. Other Industries: carbon black, activated carbon and pearl etc.
